Heavy type hexagonal shaped expanded metal also known as among the tortoise-shaped expanded metal, is a heavy type expanded metal, reinforced compared with the regular expanded metal products. Heavy expanded metal is made of high quality plain steel after being expanded on the automatic expanded machines. Because of the high strength of heavy type expanded metal, it is mostly used as walkways, ramps and catwalks of all types.
Specification of sacffold expanded metal mesh
Materials: carbon steel, mild steel
Hole shapes: diamond
SWD: 30 mm – 40mm
LWD: 60 mm – 80 mm
Thickness: 3 mm – 4 mm
Package: wooden pallet and outer is wrapped by waterproof paper.
Typical scaffolding expanded metal mesh

•

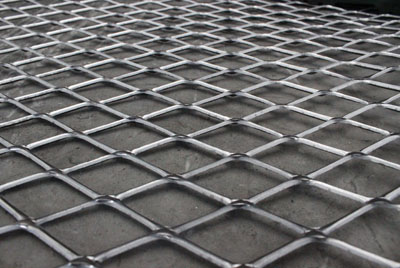

  Scaffolding expanded metal mesh
  MARK NO: EM-60/30/3.5-M
  Material: hot rolled steel, mild steel
  Max. Width of material(mm): 1250
  Thickness(mm): 3.0
  LWD(mm): 60
  SWD(mm): 30
  Strand width(mm): 3.5
  Weight: 5.5 kg/m2
  Nom. Open Area: 76.67 %
  Expansion factor: 4.29
  Mesh type: Diamond expanded mesh

•

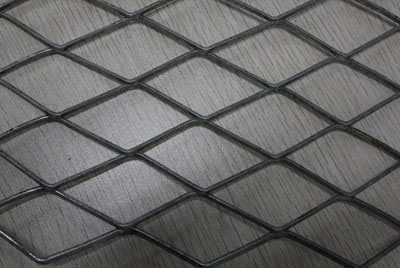

  Walkway expanded metal mesh
  MARK NO: EM-70/35/3.5-M
  Material: hot rolled steel, mild steel
  Max. Width of material(mm): 1250
  Thickness(mm): 3.0
  LWD(mm): 70
  SWD(mm): 35
  Strand width(mm): 3.5
  Weight: 4.72 kg/m2
  Nom. Open Area: 80.00 %
  Expansion factor: 5.00
  Mesh type: Raised expanded metal mesh

Applications

•

  Scaffolding expanded metal mesh

•

  Scaffold expanded metal mesh

•

  Scaffold expanded metal mesh for construction
